Rivendell Bleriot Build Photo:

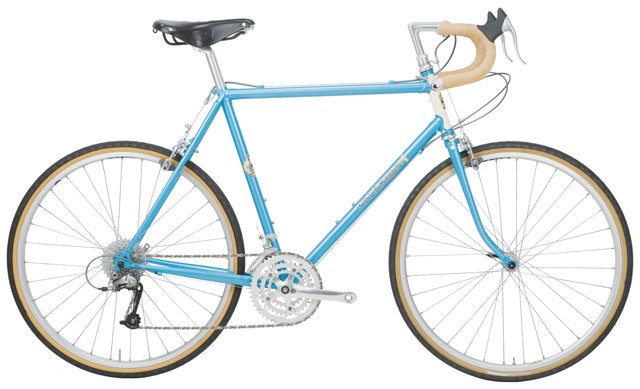

Rivendell Bleriot - complete build -side view


Rivendell Bleriot frame set.

650b wheels and a comfortable all around geometry. Classic steel lugged frame.

* Uses 650b wheels
* Fully lugged CroMoly frame
* Rivendell CroMoly fork with lugged crown, 1" threaded
* 1" threaded headset
* Seatpost diameter: 27.2mm
* Braze-on seat collar clamp
* Front derailleur clamp: 28.6mm
* BB size: 68 x 107mm, English thread
* Rear spacing: 135mm Fork

Details Steerer Tube: 1" Threaded Steerer Tube Length: Fork Rake: Axle to Crown Length: Crown Race: 26.4 Front Axle Type: 9x1 Wheel Size: 650b Front Hub Spacing: 100 mm Brake Usage F/R: Front Material: Color: Blue Mint

Frame Details Frame Size: 49 - 61cm, odd Color: Blue Mint BB Shell Width: 68 mm Seatpost: 27.2 mm Headset Type: 1" Standard Cups Brake Usage F/R: Rear BB Thread Type: English Front Derailleur Style: Traditonal Front Derailleur Cable Pull: Bottom Front Derailleur Clamp: 28.6mm (1-1/8") Rear Axle Type: 10x1 Rear Hub Spacing: 135 mm Wheel Size: 650b

Recommended Parts:
TR5109 Kenda 650b x 38mm tire *584ETRTO WE6519
Rr Deore LX M580, 32h, Velocity Synergy OC 650b WE6520
Ft Deore XT M760, 32h Velocity Synergy 650b WE6521
Rr Deore XT M760, 32h Velocity Synergy OC 650b Velocity Synergy Rims WE6518
Ft Deore LX M580, 32h, Velocity Synergy 650b

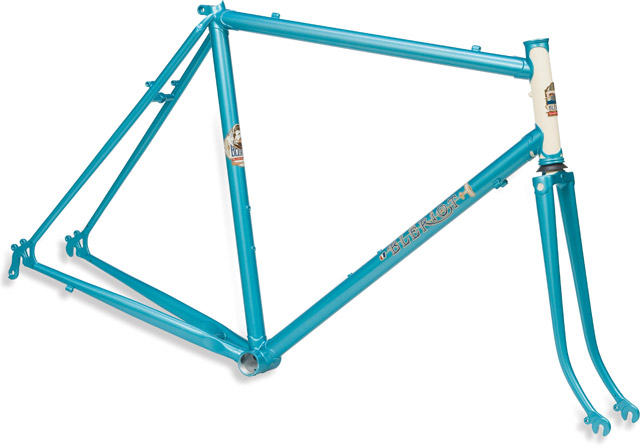

Bleriot - frame

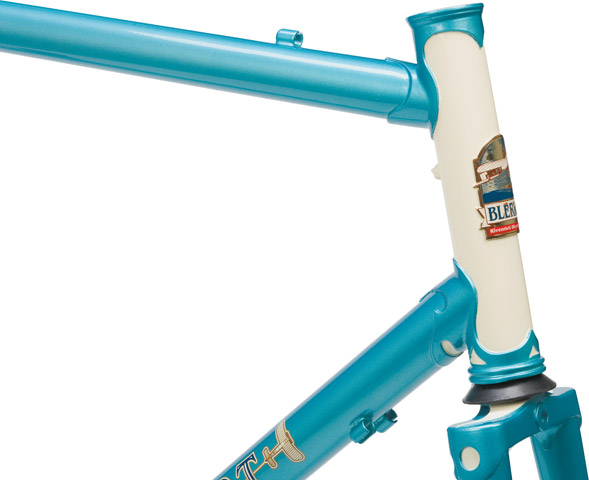

Bleriot - headbadge

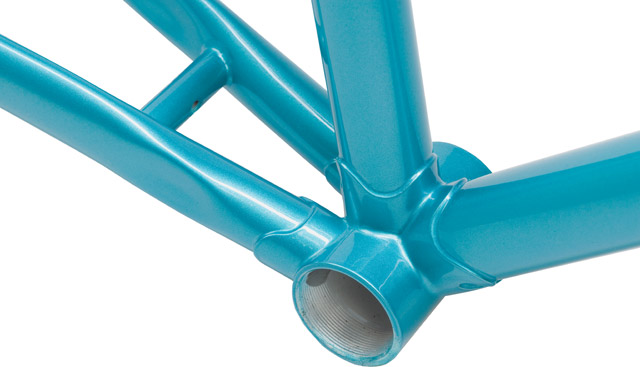

Bleriot - bb detail

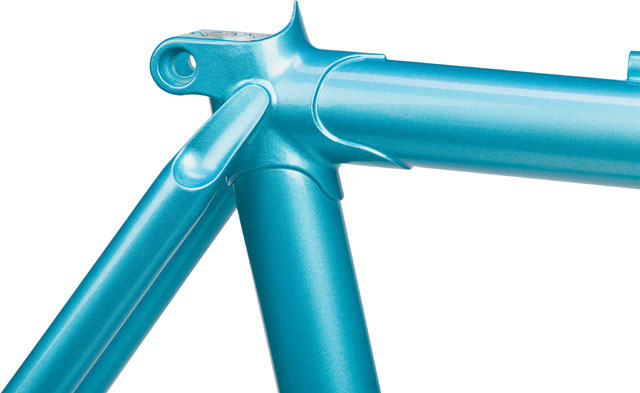

Bleriot - seat cluster
